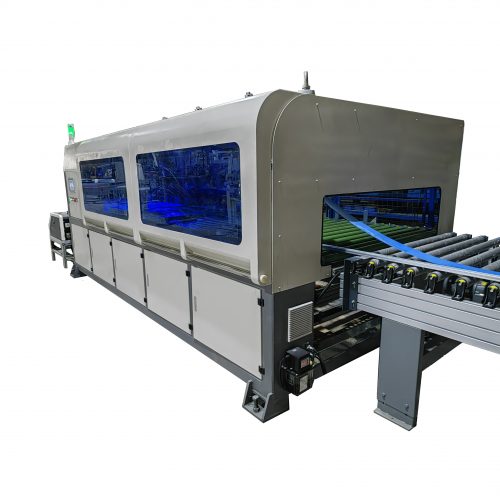

Linear Carton Sealing Machine
This carton sealing machine uses hot melt glue to make box-closing, ideal for custom furniture, suitable for sealing low and wide cartons with precision and efficiency.
| No. | Content | Parameters |
| 1 | Model | FXZB-R2812 |
| 2 | Sealing specifications | L: 300-2800mm W: 400-1200mm H: 36-300mm |
| 3 | Hot melt glue machine sealing | Glue type: APAO olefin copolymers Softening point / ℃: 110 ± 3 Viscosity 160℃ Working temperature /℃: 155-180℃ Storage: 10L |
| 4 | Application | International box model 410 single cover box/ can be processed in batches and customized |
| 5 | Feeding speed | 0-40 ( min/m) |
| 6 | Alignment servo speed | 0-50 ( min/m) |
| 7 | Glue spraying servo speed | 0-100 ( min/m) |
| 8 | Production efficiency | 0-10 pcs/min (about 10 pcs/min for cartons less than 1200mm) |
| 9 | Corrugated paper processing thickness | 2-7mm |
| 10 | Total power | 9.8KW |
| 11 | Compressed air working pressure | P=0.6-0.8MPa |
| 12 | Machine weight approx. | 3000KG |
| 13 | Machine dimension approx. | 10000*2200*1800mm(L*W*H) |
The machine body is made of strong, heavy-duty structural steel , which has been annealed to relieve stress. The gear rack is made of grinding-grade high-precision material , which has been annealed, heat – treated and hardened .
The conveying roller adopts PVC rubber hose, which is flexible and durable.
The glue spraying device automatically detects the package size and can select the glue spraying mode (dot/break/line, single line/double line).
Physically measure the length, width and height of the package, and pre-position the sealing device in advance, saving time and improving efficiency.
Add elastic devices to ensure that cartons are neatly glued and the sealing effect is guaranteed.
The carton sealing machine can be used alone or in combination with a packaging line, and its use is flexible and varied.
Structural Introduction
Carton Bonding Principles
- Optional for glue spraying mode --- Single / double glue path (sectional spraying, interval spraying)
- Seal the long side+two short sides (total 3 sides)
- Carton flaps press down while holding pressure --- stronger bond between carton and glue
- Only suitable for international box model 410
glue spraying path for long side
glue spraying path for short side
Pre-positioning Structure
- Measure the package dimensions accurately
- Data can be sent to the machine in advance to position, effectively saving time and improving efficiency
Through-type Guidance and Pressure Holding
- Glue spraying and guiding are carried out simultaneously without stopping the package
- Add elastic device to make the glue and carton bond more firmly
- Powered pressing on carton end faces --- to prevent rebound of carton flaps
Short Side Front and Rear Sealing Mechanism
- Reciprocating glue spraying according to the width of the carton
- Short side pressure holding by sealing plate
- Two cartons are processed simultaneously --- more efficiently
Working Process
- Workpieces are placed inside the carton
- The length, width and height of the package are measured in advance
- Carton side sealing
- Pressure maintenance for the long side
- Pressure maintenance for the short sides ( front and rear )
- Carton forming
