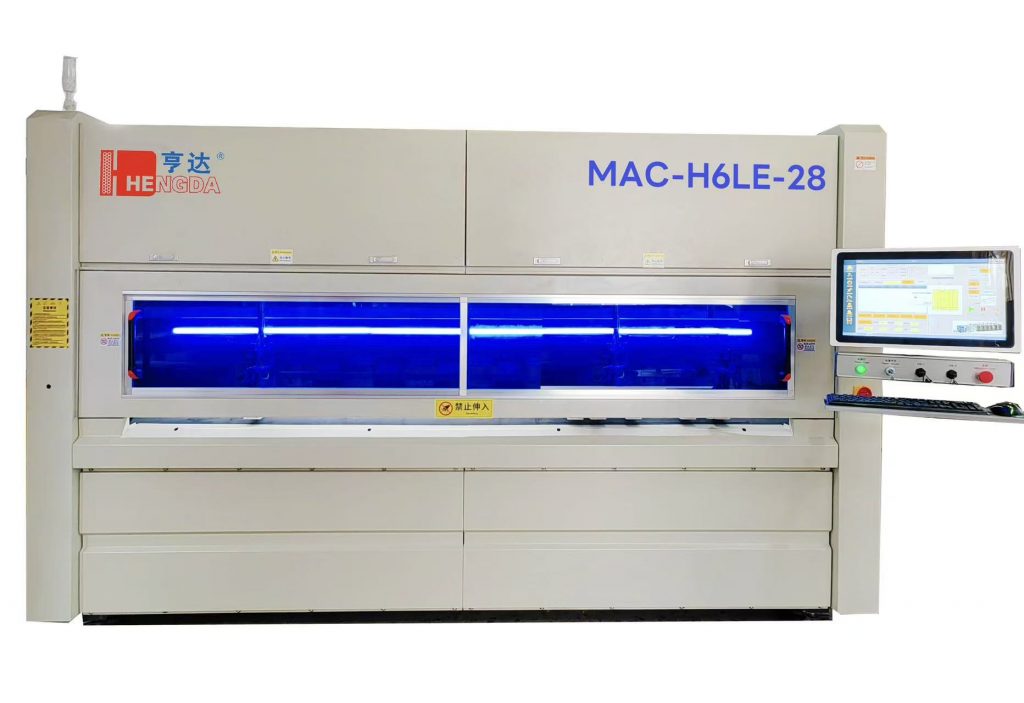

Corrugated Cardboard Box Cutting Machine
Designed for processing continuous corrugated cardboard, our carton cutting machine can operate alone or integrate seamlessly with production lines. With five different configurations available, from entry-level models to high-performance systems, they are versatile and fully compatible with international box standards, ensuring precision and efficiency in every cut.
High Preicision Carton Cutting Machine for Corrugated Cardboard Box Making
This carton cutting machine, also referred to as a box making machine, is the main structure in a packaging line. The carton cutting machine is designed to produce perfectly sized and creased cardboard pieces for packaging. It handles cutting, scoring, and creasing tasks with precision, turning flat sheets of corrugated cardboard into ready-to-assemble boxes that fit your product’s exact specifications. Whether for small-scale box making or large-scale carton packaging, this box making machine delivers unmatched versatility.
Features
The machine body is made of strong, heavy-duty structural steel , which has been annealed to relieve stress. The gear and rack is made of grinding-grade high-precision material, which has been annealed, heat – treated and hardened.
Disc flat knives instead of saw blades for extra long service life.
Dust-free creasing and cutting, no vacuum system required.
Smooth corrugated board edge after cutting.
Working Process
- Prepare corrugated cardboard and extend to equipment
- Adjust the proper position of the gripper
- Choose the box type
- Input machining dimensions
- Automatic knife processing
- Carton Forming
Horizontal cutting knife
Longitudinal cutting knife
- 1 cutting knife axis
- 1 standard dotted line pressing knife
- 1 standard cutting knife
- 6 standard dotted line pressing knives
- 6 standard cutting knives
Corrugated Cardboard Silo
- Stackable specifications: 600-1600mm
- Continuous switching of 2 specifications of corrugated cardboard for efficient processing, effectively improving the utilization rate of paperboard
- Corrugated roll paper, continuous cardboard can swithched freely
- Dual-brand processing
| No. | Content | Parameters |
| 1 | Model | MAC-H2A |
| 2 | Applicable conditions | Corrugated paper rolls ; Continuous corrugated cardboard processing |
| 3 | Corrugated paper processing thickness | 2-7mm |
| 4 | Corrugated paper stacking specifications | 600-1600mm |
| 5 | Number of corrugated paper stack | 1-2(stack) |
| 6 | 410 single lid carton processing range | Horizontal direction: L: 400-2800mm W: 250-700mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-1200mm H: 25-300mm |
| 7 | 411 middle sealed carton processing range | Horizontal direction: L: 400-2800mm W: 350-700mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-1200mm H: 16-300mm |
| 8 | Maximum speed of horizontal cutter | 90m/min |
| 9 | Production efficiency | 4-6 pcs/min |
| 10 | Total power | 5.25KW |
| 11 | Compressed air working pressure | P=0.6-0.8MPa |
| 12 | Machine weight approx. | 2000KG |
| 13 | Machine dimension approx. | 9000*2800*3000mm(L*W*H) |
Corrugated Cardboard Silo
- Stackable specifications: 600-1600mm
- Continuous switching of 4 specifications of corrugated cardboard for efficient processing, effectively improving the utilization rate of paperboard
- Corrugated roll paper, continuous cardboard can swithched freely
- Dual-brand processing
| No. | Content | Parameters |

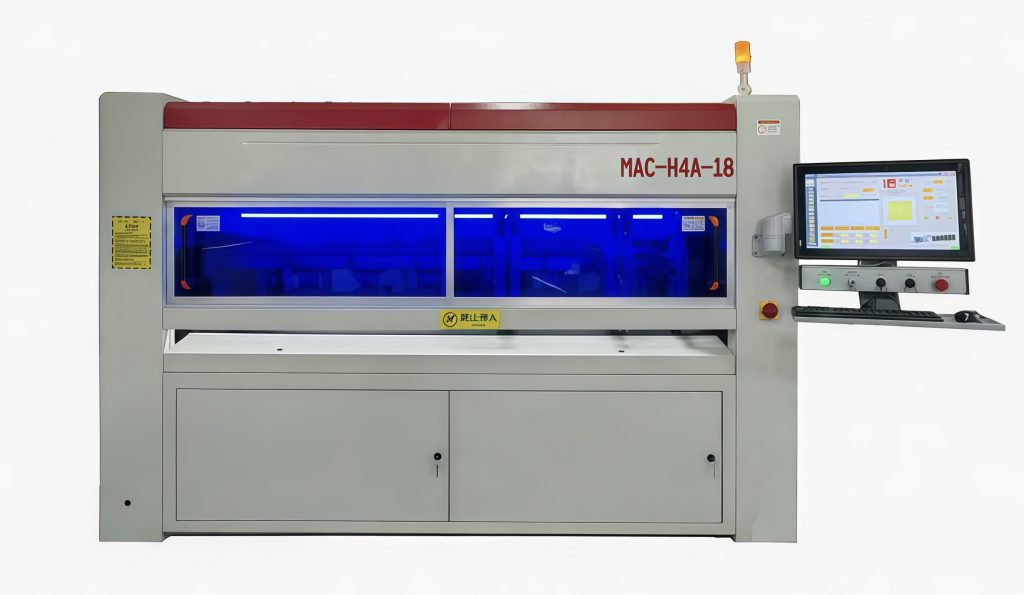

| 1 | Model | MAC-H4A |
| 2 | Applicable conditions | Corrugated paper rolls ; Continuous corrugated cardboard processing |
| 3 | Corrugated paper processing thickness | 2-7mm |
| 4 | Corrugated paper stacking specifications | 600-1600mm |
| 5 | Number of corrugated paper stack | 1-4(stack) |
| 6 | 410 single lid carton processing range | Horizontal direction: L: 400-2800mm W: 250-700mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-1200mm H: 25-300mm |
| 7 | 411 middle sealed carton processing range | Horizontal direction: L: 400-2800mm W: 350-700mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-1200mm H: 16-300mm |
| 8 | Maximum speed of horizontal cutter | 90m/min |
| 9 | Production efficiency | 4-6 pcs/min |
| 10 | Total power | 5.25KW |
| 11 | Compressed air working pressure | P=0.6-0.8MPa |
| 12 | Machine weight approx. | 2500KG |
| 13 | Machine dimension approx. | 12000*2800*3000mm(L*W*H) |
Corrugated Cardboard Silo
- Stackable specifications: 600-1600mm
- Continuous switching of 4 specifications of corrugated cardboard for efficient processing, effectively improving the utilization rate of paperboard
- Corrugated roll paper, continuous cardboard can swithched freely
- Dual-brand processing
| No. | Content | Parameters |
| 1 | Model | MAC-H6A |
| 2 | Applicable conditions | Corrugated paper rolls ; Continuous corrugated cardboard processing |
| 3 | Corrugated paper processing thickness | 2-7mm |
| 4 | Corrugated paper stacking specifications | 600-1600mm |
| 5 | Number of corrugated paper stack | 1-6(stack) |
| 6 | 410 single lid carton processing range | Horizontal direction: L: 400-2800mm W: 250-700mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-1200mm H: 25-300mm |
| 7 | 411 middle sealed carton processing range | Horizontal direction: L: 400-2800mm W: 350-700mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-1200mm H: 16-300mm |
| 8 | Maximum speed of horizontal cutter | 90m/min |
| 9 | Production efficiency | 4-6 pcs/min |
| 10 | Total power | 5.25KW |
| 11 | Compressed air working pressure | P=0.6-0.8MPa |
| 12 | Machine weight approx. | 2500KG |
| 13 | Machine dimension approx. | 12000*2800*3000mm(L*W*H) |
Corrugated Cardboard Silo
- Stackable specifications: 600-2500mm
- 12 specifications of corrugated paper are continuously switched and processed efficiently, effectively improving the utilization rate of paperboard
Dual-brand, corrugated continuous cardboard can be freely switched side by side for processing
| No. | Content | Parameters |
| 1 | Model | MAC-H6L |
| 2 | Applicable conditions | Corrugated paper rolls ; Continuous corrugated cardboard processing |
| 3 | Corrugated paper processing thickness | 2-7mm |
| 4 | Corrugated paper stacking specifications | 600-2500mm |
| 5 | Number of corrugated paper stack | 1-6(stack) |
| 6 | 410 single lid carton processing range | Horizontal direction: L: 400-2800mm W: 250-1200mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-2200mm H: 25-300mm |
| 7 | 411 middle sealed carton processing range | Horizontal direction: L: 400-2800mm W: 350-1200mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-2200mm H: 16-300mm |
| 8 | Maximum speed of horizontal cutter | 90m/min |
| 9 | Production efficiency | 4-8 pcs/min |
| 10 | Total power | 5.25KW |
| 11 | Compressed air working pressure | P=0.6-0.8MPa |
| 12 | Machine weight approx. | 3600KG |
| 13 | Machine dimension approx. | 15500*3800*3000mm(L*W*H) |
Corrugated Cardboard Silo
- Stackable specifications: 600-2500mm
- 12 specifications of corrugated paper are continuously switched and processed efficiently, effectively improving the utilization rate of paperboard
Dual-brand, corrugated continuous cardboard can be freely switched side by side for processing
| No. | Content | Parameters |
| 1 | Model | MAC-H6LD |
| 2 | Applicable conditions | Corrugated paper rolls ; Continuous corrugated cardboard processing |
| 3 | Corrugated paper processing thickness | 2-7mm |
| 4 | Corrugated paper stacking specifications | 600-2500mm |
| 5 | Number of corrugated paper stack | 1-6 (stack) / can up to 12 stacks |
| 6 | 410 single lid carton processing range | Horizontal direction: L: 400-2800mm W: 250-1200mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-2200mm H: 25-300mm |
| 7 | 411 middle sealed carton processing range | Horizontal direction: L: 400-2800mm W: 350-1200mm H: 25-300mm Longitudinal direction: L: 200-2800mm W: 150-2200mm H: 16-300mm |
| 8 | Maximum speed of horizontal cutter | 90m/min |
| 9 | Production efficiency | 4-10 pcs/min |
| 10 | Total power | 10KW |
| 11 | Compressed air working pressure | P=0.6-0.8MPa |
| 12 | Machine weight approx. | 3600KG |
| 13 | Machine dimension approx. | 15500*3800*3000mm(L*W*H) |
21-inch Industrial Touchscreen Computer
- Easy to operate and responsive
- Three modes to switch --- 'stand-alone' processing, code-scanning processing, in-line processing
- Easy and convenient data interfacing
Feeding Positioning Mechanism
- Left and right grippers hold cardboard in place to prevent runout
- Guide strip reduces conveying resistance and feeds paper more accurately
- Automatic calculation of the most economical paper size for processing
Vertical Slitting and Creasing
- Slitting and creasing are processed simultaneously to highlight the contour
- Excellent cutting performance without any burr
