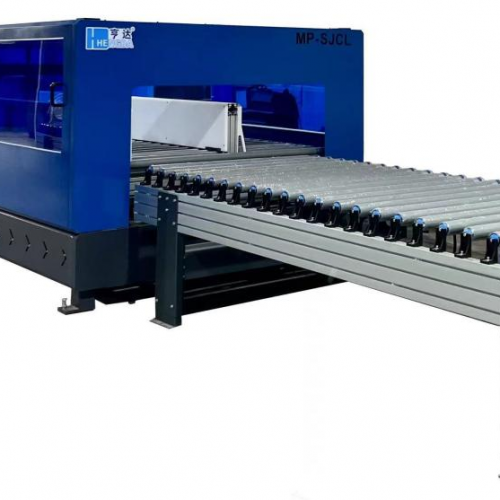

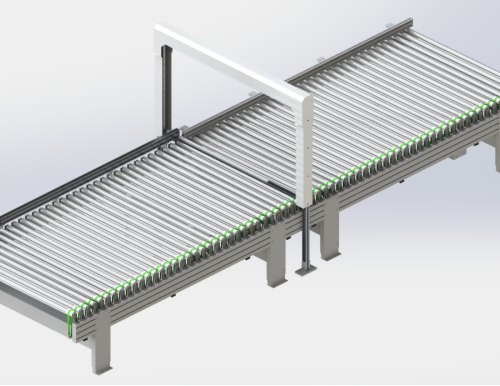

Intelligent & Accurate Measuring Station
This machine is used to measure the stacking length, height and thickness of each package before packaging. Customizable according to the size of packages.
| No. | Content | Parameters |
| 1 | Model | MP-SJC |
| 2 | Measuring length | 300-2800mm |
| 3 | Measuring width | 300-1200mm |
| 4 | Measuring thickness | 18-250mm |
| 5 | Load | 50KG |
| 6 | Conveying speed | 0-40m/min (Adjustable frequency conversion) |
| 7 | Measurement efficiency | 3-4 packs/min |
| 8 | Measurement accuracy | ±1mm |
| 9 | Working height | 800±50mm |
| 10 | Applicable plate | Max : 2800*1200*250mm Min : 300*300*18mm |
| 11 | Length measurement servo motor power | 0.75KW |
| 12 | Width measurement servo motor power | 1.5KW |
| 13 | Total power | 3KW |
| 14 | Machine weight approx. | 1300KG |
| 15 | Machine dimension approx. | 4000*1900*1500mm(L*W*H) |
The rollers are made of hot galvanized pipes with high corrosion resistance.
The surface of galvanized pipe is covered with a layer of rubber hose, which effectively prevents the surface of the boards from being smeared by friction and ensures that the surface of the workpiece is in good condition.
The frame is cold plate welded and CNC machined to ensure machining accuracy and improve the stability of equipment operation.
The elastic belt drive has low noise during operation, and the elastic belt is tough enough and not easy to break.
Structural Introduction
10-inch industrial touchmonitor – easy to operate and responsive
- Industrial measuring light curtain for 1200mm width workpieces
- High anti-interference capability
- Pre-measurement data is sent to PLC for pre-positioning
- Infrared Displacement Sensor - Detecting Height
- Workpiece movement mode measurement can be accurate to ±1mm
- Precision Width Gauge Physical Backboard - Accurate Data Delivery
- Offset workpieces can be leveled sideway
- Lifting baffle prevents plate leakage
- Auxiliary measurement of board length and width offsets
Working Process
- Workpieces preparation
- Pre-measure length and width of the workpieces
- Precise measurement of length, width, height
- Data is sent to the carton machine to make cartons
