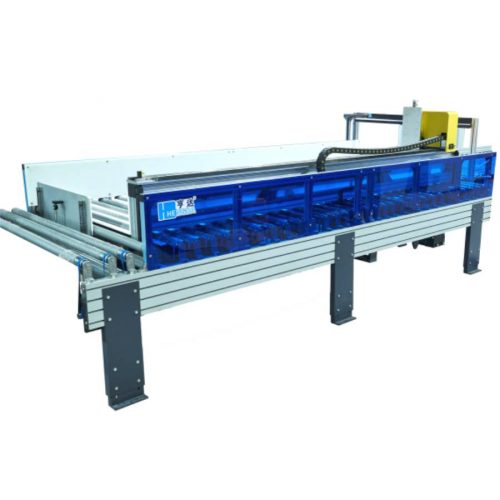

Light Curtain Size Measuring Machine
This machine uses an infrared light curtain to measure the length, width, and thickness of items with precision and efficiency, ensuring accurate data for streamlined packaging processes.
| No. | Content | Parameters |
| 1 | Model | MP-SJCG |
| 2 | Measuring length | 300-2800mm |
| 3 | Measuring width | 300-1200mm |
| 4 | Measuring thickness | 18-250mm |
| 5 | Load | 50KG |
| 6 | Conveying speed | 0-40m/min (Adjustable frequency conversion) |
| 7 | Measurement efficiency | 8-12 packs/min |
| 8 | Measurement accuracy | ±5mm |
| 9 | Working height | 800±50mm |
| 10 | Applicable plate | Max : 2800*1200*300mm Min : 300*300*18mm |
| 11 | Length measurement servo motor power | 0.75KW |
| 12 | Width measurement servo motor power | 1.5KW |
| 13 | Total power | 3KW |
| 14 | Machine weight approx. | 1000KG |
| 15 | Machine dimension approx. | 6000*1700*800mm(L*W*H) |
The rollers are made of hot galvanized pipes with high corrosion resistance.
The surface of galvanized pipe is covered with a layer of rubber hose, which effectively prevents the surface of the boards from being smeared by friction and ensures that the surface of the workpiece is in good condition.
The frame is cold plate welded and CNC machined to ensure machining accuracy and improve the stability of equipment operation.
The elastic belt drive has low noise during operation, and the elastic belt is tough enough and not easy to break.
- The size information: length, width and height of the workpieces are measured by infrared light curtain measurement with automatic control.
- Simultaneous measurement of length, width and height, high efficiency and low failure rate.
Structural Introduction
10-inch industrial touchmonitor – easy to operate and responsive
- Industrial measuring light curtain for 1200mm width workpieces
- High anti-interference capability
- Pre-measurement data is sent to PLC for pre-positioning
Working Process
- Workpieces preparation
- Intelligent measurement of length, width, height
- Data is sent to the carton machine to make cartons
