Balsa Wood Sabah Wood Core Material Diversion Slotting Cutting Machine
This slotting machine is designed for deep and shallow grooving of balsa wood (sabah wood) cores. Using a front-to-back processing way with circular blade pressing and cutting, it can finish all groove positions in one pass.

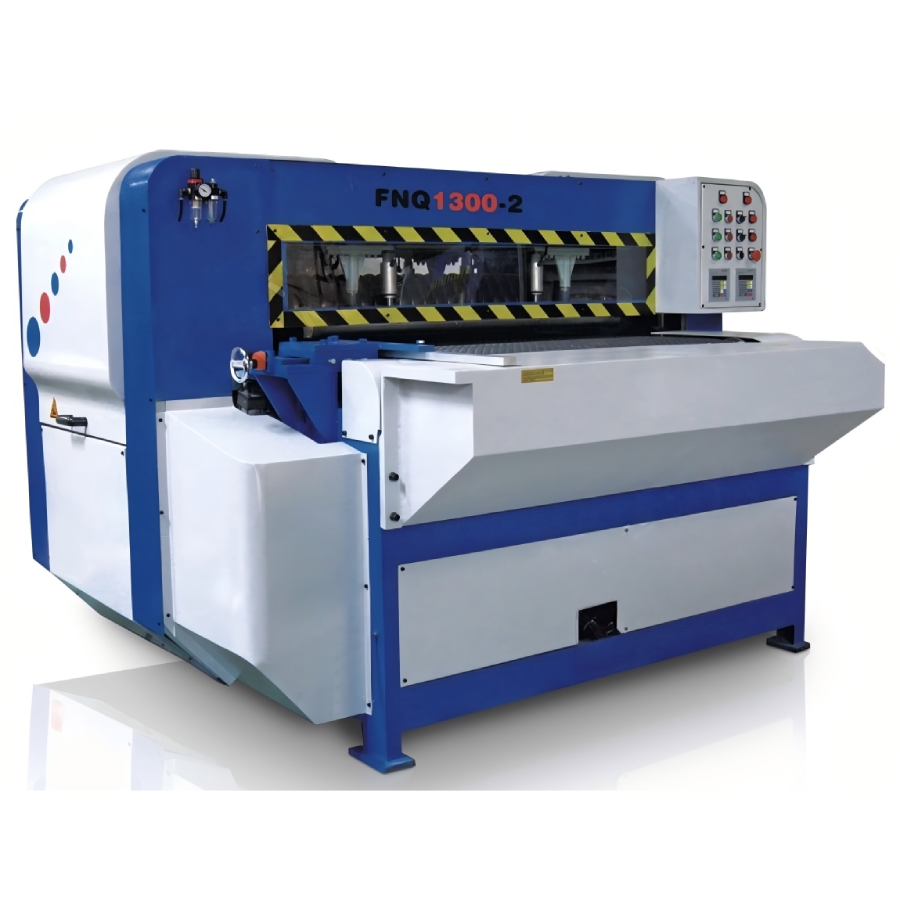

Technical Data
| No. | Content | Parameters |
| 1 | Model | FNQ1300-2 |
| 2 | Name | Light Balsa wood core material cutting machine (2 axes) |
| 3 | Thickness for processing trough (mm) | 0-50 |
| 4 | Width for processing roughcast (mm) | Max.: 1300 |
| 5 | Feeding speed (m/min) | 0-12 |
| 6 | Feeding variable frequency motor power (KW) | 3 |
| 7 | Spindle speed (r/min) | 0-2300 |
| 8 | Spindle variable frequency motor power (KW) | 11KW*2 |
| 9 | Saw blade diameter (mm) | 200-230 |
| 10 | Machine dimension approx. (mm) | 3000*2250*1600 (L*W*H) |
| 11 | Two spindles: the spindle is above | |
| 12 | Feeding by conveyor belt, with automatic cleaning of the feeding belt and knife device. | |
| 13 | Electronic controlling the spindle lifting and frame up and down with digital position | |
| 14 | Range of application: processing trough for balsa | |

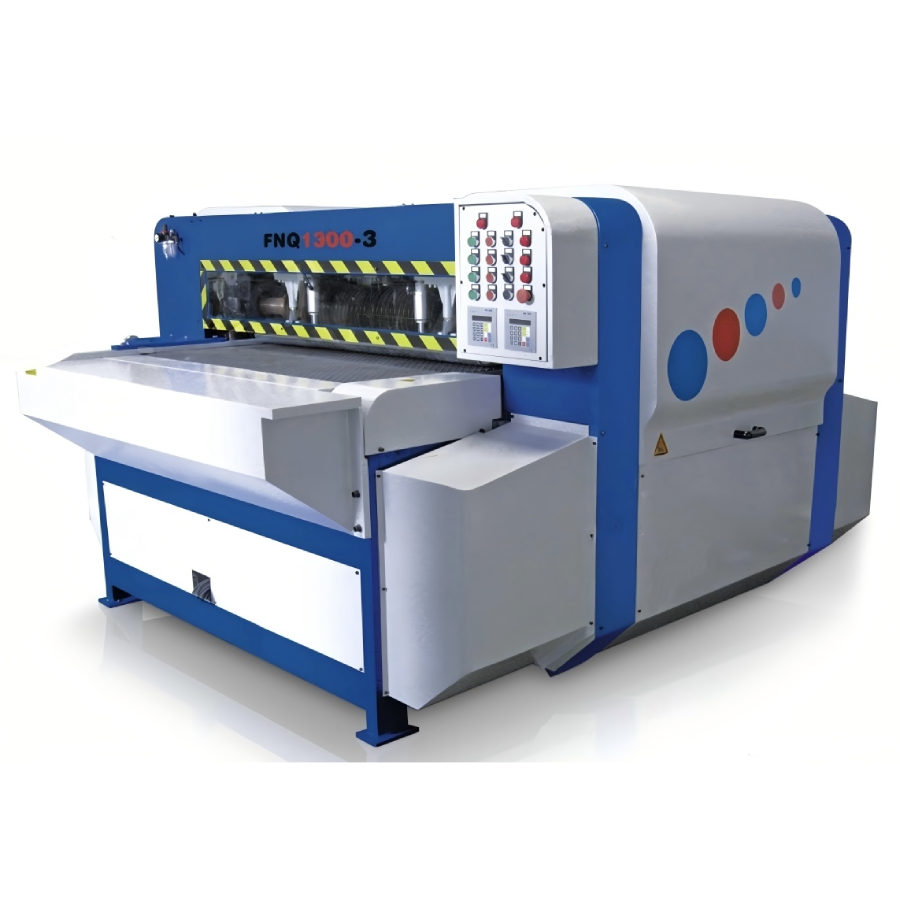

Technical Data
| No. | Content | Parameters |
| 1 | Model | FNQ1300-3 |
| 2 | Name | 2 inches thick light Balsa wood core material diversion cutting machine(3 axes) |
| 3 | Thickness for processing trough (mm) | 0-50 |
| 4 | Width for processing roughcast (mm) | Max.: 1300 |
| 5 | Feeding speed (m/min) | 0-12 |
| 6 | Feeding variable frequency motor power (KW) | 3 |
| 7 | Spindle speed (r/min) | 0-2300 |
| 8 | Spindle variable frequency motor power (KW) | 11KW*3 |
| 9 | Saw blade diameter (mm) | 200-230 |
| 10 | Machine dimension approx. (mm) | 3500*2250*1600 (L*W*H) |
| 11 | Three spindles: the spindle is above | |
| 12 | Feeding by conveyor belt, with automatic cleaning of the feeding belt and knife device. | |
| 13 | Electronic controlling the spindle lifting and frame up and down with digital position | |
| 14 | Range of application: processing trough for balsa | |
